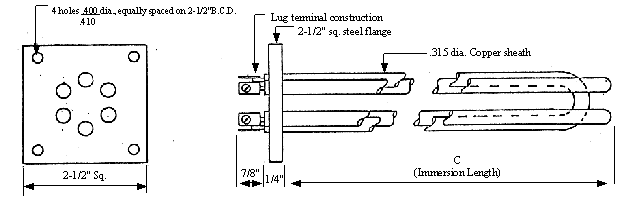

.315 DIA. COPPER SHEATH IMMERSION ELEMENTS
WITH 2-1/2" SQUARE STEEL FLANGE
| THREE RODS –1 OR 3 PHASE 21/2" SQ. | |||
|---|---|---|---|
| Model Number | Watts | Volts | C |
| BC3-7523-15 BC3-7543-15 |
7500 7500 |
208 240 |
15" 15" |
| BC3-9023-15 BC3-9043-15 |
9000 9000 |
208 240 |
15" 15" |
| BC3-12023-15 BC3-12043-15 BC3-12053-15 |
12000 12000 12000 |
208 240 480 |
15" 15" 15" |
| BC3-18023-22 BC3-18043-22 BC3-18053-22 |
18000 18000 18000 |
208 240 480 |
22" 22" 22" |

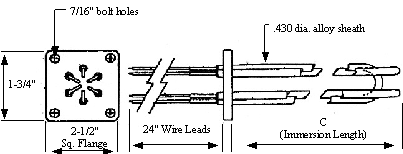

A.O. SMITH-NASCO REPLACEMENT ELEMENTS
| Three Rods - 1 or 3 Phase 2-1/2" Sq. Flange | |||
| Model Number | Watts | Volts | C |
| BNL-9023-15 BNL-9043-15 BNL-9053-15 |
9000 9000 9000 |
208 240 480 |
15–1/2" 15–1/2" 15–1/2" |
| BNL-12023-15 BNL-12043-15 BNL-12053-15 |
12000 12000 12000 |
208 240 480 |
15-1/2" 15-1/2" 15-1/2" |
| BNL-15023-15 BNL-15043-15 BNL-15053-15 |
15000 15000 15000 |
208 240 480 |
15-1/2" 15-1/2" 15-1/2" |
| BNL-15043-22 BNL-15053-22 |
15000 15000 |
240 480 |
22" 22" |
| BNL-18023-15 BNL-18043-15 BNL-18053-15 |
18000 18000 18000 |
208 240 480 |
15-1/2" 15-1/2" 15-1/2" |
