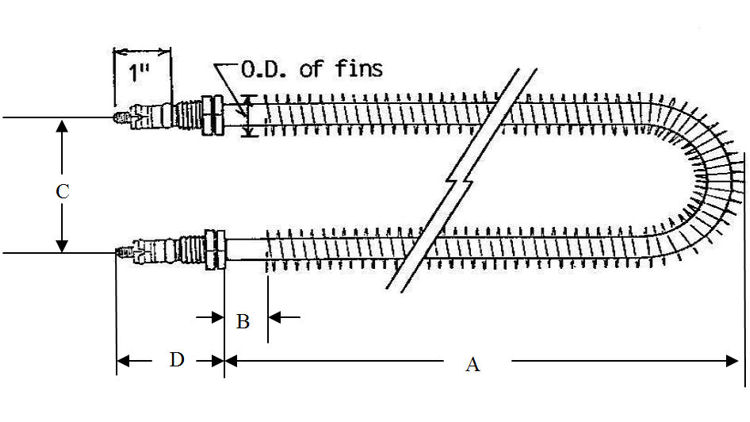

| Therm-Coil Drawing Number |
Watts | Volts | A | B | C | D | Fin O.D. |
Bulkhead Fitting Size |
Bulkhead Fitting Material |
|---|---|---|---|---|---|---|---|---|---|
| 368A-1000-001 | 4500W | 277 V | 42" | 2-1/2" | 3-1/4" | 2-1/4" | 1-3/16" | 5/8-18 | Steel |
| 368A-1000-002 | 4500W | 277 V | 29" | 2" | 3-1/4" | 2-1/4" | 1-3/16" | 5/8-18 | Steel |
| 368A-1002-001 | 2240W | 240 V | 20-7/8" | 1" | 2-1/2" | 1-3/4" | 3/4-16 | Stainless | |
| 368A-1002-002 | 2240W | 480 V | 20-7/8" | 1" | 2-1/2" | 1-3/4" | 3/4-16 | Stainless | |
| 368A-1002-003 | 2800W | 240 V | 25-7/8" | 1" | 2-1/2" | 1-3/4" | 3/4-16 | Stainless | |
| 368A-1002-004 | 2800W | 480 V | 25-7/8" | 1" | 2-1/2" | 1-3/4" | 3/4-16 | Stainless | |
| 368A-1003-001 | 1000W | 208 V | 11" | 1-1/4" | 3-3/8" | 1-5/8" | 1-3/16" | 5/8-18 | Steel |
| 368A-1003-002 | 890W | 277 V | 6" | 5/8" | 1-1/4" | 1-3/4" | 1-1/4" | 5/8-18 | Steel |
| 368A-1003-003 | 890W | 240 V | 6" | 5/8" | 1-1/4" | 1-3/4" | 1-1/4" | 5/8-18 | Steel |
| 368A-1003-004 | 890W | 332 V | 6" | 5/8" | 1-1/4" | 1-3/4" | 1-1/4" | 5/8-18 | Steel |
| 368A-1003-005 | 5000W | 240 V | 29" | 7/8" | 1-3/16" | 2" | 1-3/16" | 3/8-16 | Steel |
| 368A-1006-001 | 2000W | 240 V | 13-3/4" | 1-1/8" | 3-1/2" | 2" | 1-3/16" | 5/8-18 | Brass |
