| COPPER SHEATH ELEMENT 60 WATTS PER SQUARE INCH WITH SINGLE POLE 25 AMP THERMOSTAT |
||||||||||
| MODEL NO. | KW | GAL. PER Hr. 100°F RISE |

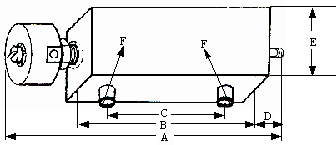

DIMENSIONS (INCHES) | |||||||
| 208V | 240V | 480V | A | B | C | D | E | F | ||
| CFHE-3023 CFHE-5023 CFHE-7523 |
CFHE-3043 CFHE-5043 CFHE-7543 |
CFHE-3053 CFHE-5053 CFHE-7553 |
3 5 7.5 |
12 20 30 |
27 27 27 |
22-1/2 22-1/2 22-1/2 |
17 17 17 |
1-1/4 1-1/4 1-1/4 |
6-1/2 6-1/2 6-1/2 |
1"NPT 1"NPT 1"NPT |
| CFHE-10023 CFHE-12023 CFHE-15023 |
CFHE-10043 CFHE-12043 CFHE-15043 |
CFHE-10053 CFHE-12053 CFHE-15053 |
10 12 15 |
40 48 60 |
31-1/2 31-1/2 44-1/2 |
27 27 40 |
22 22 35 |
1-1/4 1-1/4 1-1/4 |
6-1/2 6-1/2 6-1/2 |
1"NPT 1"NPT 1"NPT |
| ALLOY SHEATH ELEMENT 50 WATTS PER SQUARE INCH WITH SINGLE POLE 25 AMP THERMOSTAT |
||||||||||
| MODEL NO. | KW | GAL. PER Hr. 100°F RISE |
DIMENSIONS (INCHES) | |||||||
| 208V | 240V | 480V | A | B | C | D | E | F | ||
| AFHE-3023 AFHE-5023 AFHE-7523 |
AFHE-3043 AFHE-5043 AFHE-7543 |
AFHE-3053 AFHE-5053 AFHE-7553 |
3 5 7.5 |
12 20 30 |
27 27 27 |
22-1/2 22-1/2 22-1/2 |
17 17 17 |
1-1/4 1-1/4 1-1/4 |
6-1/2 6-1/2 6-1/2 |
1"NPT 1"NPT 1"NPT |
| AFHE-10023 AFHE-12023 AFHE-15023 |
AFHE-10043 AFHE-12043 AFHE-15043 |
AFHE-10053 AFHE-12053 AFHE-15053 |
10 12 15 |
40 48 60 |
31-1/2 44-1/2 44-1/2 |
27 40 40 |
22 35 35 |
1-1/4 1-1/4 1-1/4 |
6-1/2 6-1/2 6-1/2 |
1"NPT 1"NPT 1"NPT |
| ALLOY SHEATH ELEMENT 30 WATTS PER SQUARE INCH STAINLESS STEEL PLUG, NICKLE BRAZED WITH 25 AMP SINGLE POLE THERMOSTAT |
||||||||||
| MODEL NO. | KW | GAL. PER Hr. 100°F RISE |
DIMENSIONS (INCHES) | |||||||
| 208V | 240V | 480V | A | B | C | D | E | F | ||
| AFHE-3023-L AFHE-5023-L AFHE-7523-L |
AFHE-3043-L AFHE-5043-L AFHE-7543-L |
AFHE-3053-L AFHE-5053-L AFHE-7553-L |
3 5 7.5 |
12 20 30 |
27 31-1/2 44-1/2 |
22-1/2 27 40 |
17 22 35 |
1-1/4 1-1/4 1-1/4 |
6-1/2 6-1/2 6-1/2 |
1"NPT 1"NPT 1"NPT |
| AFHE-10023-L AFHE-12023-L |
AFHE-10043-L AFHE-12043-L |
AFHE-10053-L AFHE-12053-L |
10 12 |
40 48 |
54-1/2 54-1/2 |
50 50 |
45 45 |
1-1/4 1-1/4 |
6-1/2 6-1/2 |
1"NPT 1"NPT |
| STEEL SHEATH ELEMENT 22 WATTS PER SQUARE INCH WITH SINGLE POLE 25 AMP THERMOSTAT |
||||||||||
| MODEL NO. | KW | GAL. PER Hr. 100°F RISE |
DIMENSIONS (INCHES) | |||||||
| 208V | 240V | 480V | A | B | C | D | E | F | ||
| SFHE-3023 SFHE-5023 SFHE-7523 SFHE-10023 |
SFHE-3043 SFHE-5043 SFHE-7543 SFHE-10043 |
SFHE-3053 SFHE-5053 SFHE-7553 SFHE-10053 |
3 5 7.5 10 |
24 40 60 80 |
27 31-1/2 44-1/2 54-1/2 |
22-1/2 27 40 50 |
17 22 35 45 |
1-1/4 1-1/4 1-1/4 1-1/4 |
6-1/2 6-1/2 6-1/2 6-1/2 |
1"NPT 1"NPT 1"NPT 1"NPT |
Note:
