Over The Side Immersion Heaters

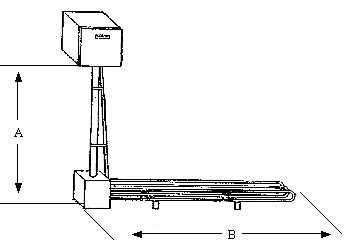

Therm Coil Over The Side Tank Heater

Available in copper, steel and alloy tubular element with moisture resistant terminal enclosures and non- heating riser. All models are available with or without thermostat control. Standard thermostat range is 60°-250°F. Magnetic contactors are included in thermostatic control model when load is more than 25 amp or 3 phase.
COPPER SHEATH HEATERS
Moisture Proof Enclosure
Without Thermostat		 Moisture Proof Enclosure
With Thermostat @ 60°-250F°		 WATT DENSITY   DIMENSIONS
(INCHES)
45 60 60
MODEL NO. MODEL NO. KW. AT
208V.		 KW. AT
240V.		 KW. AT
480V.		 PHASE A B R
COT-3043-WP
COT-6043-WP
COT-7543-WP		 COTG-3043-WP
COTG-6043-WP
COTGM-7543-WP		 2.25
4.5
5.6		 3
6
7.5

 		 1 or 3
1 or 3
3		 36
36
48		 11
16
20		 5
7
8
COT-9043-WP
COT-12043-WP
COT-6053-WP		 COTGM-9043-WP
COTGM-12043-WP
COTGM-6053-WP		 6.75
9
 		 9
12


6		 3
3
3		 48
48
36		 42
54
16		 15
19
7
COT-7553-WP
COT-9053-WP
COT-12053-WP		 COTGM-7553-WP
COTGM-9053-WP
COTGM-12053-WP



 		 7.5
9
12		 3
3
3		 48
48
48		 20
23
27		 8
9
10
STEEL SHEATH HEATERS
Moisture Proof Enclosure
Without Thermostat		 Moisture Proof Enclosure
With Thermostat @ 60°-250F°		 WATT DENSITY   DIMENSIONS
(INCHES)
16.5 22 22
MODEL NO. MODEL NO. KW. AT
208V.		 KW. AT
240V.		 KW. AT
480V.		 PHASE A B R
SOT-3043-WP
SOT-6043-WP
SOT-7543-WP		 SOTG-3043-WP
SOTG-6043-WP
SOTGM-7543-WP		 2.25
4.5
5.6		 3
6
7.5

 		 1 or 3
1 or 3
3		 36
36
48		 23
39
48		 9
14
17
SOT-9043-WP
SOT-3053-WP
SOT-6053-WP		 SOTGM-9043-WP
SOTGM-3053-WP
SOTGM-6053-WP		 6.75

 		 9


3
6		 3
3
3		 48
36
36		 55
23
39		 19
9
14
SOT-7553-WP
SOT-9053-WP		 SOTGM-7553-WP
SOTGM-9053-WP

 		 7.5
9		 3
3		 48
48		 48
55		 17
19

Note:
