CI-2002 Commercial Industrial Catalog

50 Watts Per Square Inch
Regulated (Double Pole Stat)

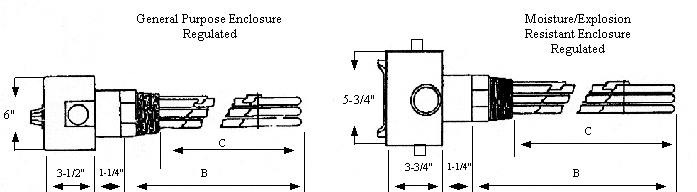

KW	Volts	Phase	Dimensions (Inches)		Regulated (60°-250°F)
			Dimensions (Inches)		General Purpose Enclosure	Moisture/Explosion Resistant Enclosure
			B	C	General Purpose Enclosure	Moisture/Explosion Resistant Enclosure
10 10	240 480	3 3	27 27	25 25	DAA-10043 DAA-10053	DAA-10043WXP DAA-10053WXP
12 12	240 480	3 3	35 35	33 33	DAA-12043 DAA-12053	DAA-12043WXP DAA-12053WXP
15 15	240 480	3 3	42 42	40 40	DAA-15043 DAA-15053	DAA-15043WXP DAA-15053WXP
18 18	240 480	3 3	50 50	48 48	DAA-18043 DAA-18053	DAA-18043WXP DAA-18053WXP

Note:

Standard temperature range is 60°-250°F.
For temperature range of 30°-110°F: add the suffix T1
For temperature range of 200°-550°F: add the suffix T5
For stainless steel header instead of brass header: add the suffix SSN. Consult Factory.
Regulated models require a magnetic contactor for the following conditions:
- Single phase ampere rating over 30 amps
- All 208 and 240 volt, 3 phase applications.
- All 480V, single and three phase applications.
208V models not shown are available upon request. Consult factory.
240V units may be derated for 208V usage with a 25% reduction in wattage.
