Vulcan-Hart

Click Image to Enlarge

378F-1451
Therm-Coil Drawing
Number		 Vulcan-Hart
Part Number		 Watts Volts C Sheath Material
378F-1451-001   6000 W 208 V 16" Copper
378F-1451-002   6000 W 240 V 16" Copper
378F-1451-003   6000 W 480 V 16" Copper
378F-1451-004 32611-11 9000 W 208 V 21 1/4" Copper
378F-1451-005 32611-12 9000 W 240 V 21 1/4" Copper
378F-1451-006 32611-13 9000 W 480 V 21 1/4" Copper
378F-1451-007   6000 W 208 V 16" Stainless
378F-1451-008   6000 W 240 V 16" Stainless
378F-1451-009   6000 W 480 V 16" Stainless
378F-1451-010   9000 W 208 V 21 1/4" Stainless
378F-1451-011   9000 W 240 V 21 1/4" Stainless
378F-1451-012   9000 W 480 V 21 1/4" Stainless
378F-1451
Therm-Coil Drawing
Number		 Therm-Coil
Model Number		 Watts Volts
  VH-B-20150-10 1200 120
  VH-B-20150-11 1200 240

Therm-Coil Drawing
Number		 Therm-Coil
Model Number		 Watts Volts
  VH-23047-20 2025 208
  VH-23047-21 2025 240

Therm-Coil Drawing
Number		 Therm-Coil
Model Number		 Watts Volts Details
  VH-23049-20 1450 208 B
  VH-23049-21 1450 240 B
  VH-23051-20 1250 208 A
  VH-23051-21 1250 240 A

Therm-Coil Drawing
Number		 Therm-Coil
Model Number		 Watts Volts Details
  VH-23049-22 1700 208 B
  VH-23049-23 1700 240 B
  VH-23051-22 2300 208 A
  VH-23051-23 2300 240 A

Therm-Coil Drawing
Number		 Therm-Coil
Model Number		 Watts Volts Details
  VH-11078-2 1200 208 A
  VH-110778-3 1200 240 A
  VH-10778-1 1200 480 A
  VH-110780-1 1300 208 B
  VH-110780-3 1300 240 B
  VH-110780-1 1300 480 B

Therm-Coil Drawing
Number		 Therm-Coil
Model Number		 Watts Volts Details
  VH-110743-3 1800 208 A
  VH-110743-2 1800 240 A
  VH-110743-4 1800 208 B
  VH-110743-5 1800 240 B

Therm-Coil Drawing
Number		 Therm-Coil
Model Number		 Watts Volts
  VH-107012-4 3000 208
  VH-107012-5 3000 240
  VH-107012-6 3000 480

240Therm-Coil Drawing
Number		 Therm-Coil
Model Number		 Watts Volts
  VH-107774-1 3400 208
  VH-1007774-2 3400 240

Therm-Coil Drawing
Number		 Therm-Coil
Model Number		 Watts Volts
  VH-107775-1 3750 208
  VH-107775-2 3750 240

Therm-Coil Drawing
Number		 Therm-Coil
Model Number		 Watts Volts
  VH-105440-11 3300 208
  VH-105440-12 3300 240
  VH-105440-13 3300 480
  VH-105388-11 5000 208
  VH-105388-12 5000 240
  VH-105388-13 5000 480

Therm-Coil Drawing
Number		 Therm-Coil
Model Number		 Watts Volts Details
  VH-E-109286-2 3000 208 A
  VH-E-109286-1 3000 240 A
  VH-E-109286-3 3000 480 A
  VH-E-109287-2 3000 208 B
  VH-E-109287-1 3000 240 B
  VH-E-109287-3 3000 480 B

Therm-Coil Drawing
Number		 Therm-Coil
Model Number		 Watts Volts
  VH-E-110911-1 2000 208
  VH-E-110911-2 2000 240

Therm-Coil Drawing
Number		 Therm-Coil
Model Number		 Watts Volts
  VH-110928-1 1700 208
  VH-110928-2 1700 240
  VH-110928-3 1700 480

Therm-Coil Drawing
Number		 Therm-Coil
Model Number		 Watts Volts
  VH-111214-1 3400 308
  VH-111214-2 3400 340
  VH-111214-3 3400 480

Therm-Coil Drawing
Number		 Therm-Coil
Model Number		 Watts Volts
  VH-111371-1 2000 208
  VH-111371-2 2000 240
  VH-111371-3 2000 480

Therm-Coil Drawing
Number		 Therm-Coil
Model Number		 Watts Volts
  VH-111372-1 2000 208
  VH-111372-2 2000 240

Therm-Coil Drawing
Number		 Therm-Coil
Model Number		 Watts Volts
  VH-111967-4 5000 208
  VH-111967-5 5000 240
  VH-111967-6 5000 480

Therm-Coil Drawing
Number		 Therm-Coil
Model Number		 Watts Volts
  VH-111861-1 3000 208
  VH-111861-2 3000 240
  VH-111861-3 3000 480

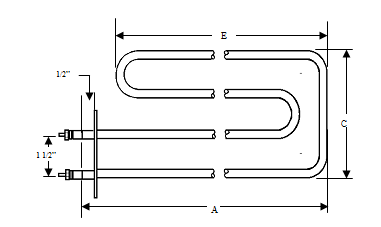

Therm-Coil Drawing
Number		 Therm-Coil
Model Number		 Watts Volts A C E LIST
366B-1249-001 VH-111861-4 2000W 208V 19-5/8" 4-7/16" 18-5/16" $113.00
366B-1249-002 VH-111861-5 2000W 240V 19-5/8" 4-7/16" 18-5/16" $113.00
366B-1249-005 VH-111861-8 2000W 120V 19-5/8" 4-7/16" 18-5/16" $113.00
