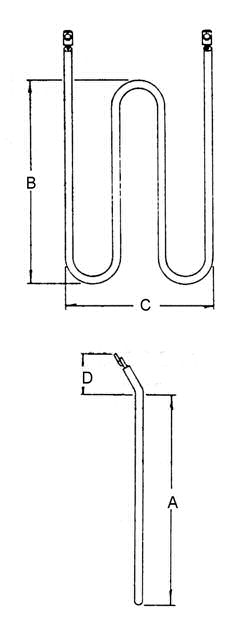

Therm-Coil Drawing
Number |
Therm-Coil
Model Number |
Watts |
Volts |
Rod Dia. |
A |
B |
C |
D |
| |
CHTM-1011-32 |
1000 |
120 |
.315 |
32 5/32" |
30 5/16" |
13 13/16" |
1 3/4" |
| |
CHTM-1011-32-1 |
1000 |
120 |
.315 |
32 5/32" |
30 5/16" |
18 5/16" |
1 3/4" |
| |
CHTM-1051-15 |
1000 |
480 |
.430 |
15 1/32" |
13 1/8" |
7 15/16" |
1 3/4" |
| |
CHTM-721-15 |
750 |
208 |
.315 |
14 31/32" |
13" |
7 13/16" |
1 3/4" |
| |
CHTM-1521-15 |
1500 |
208 |
.315 |
14 31/32" |
13" |
7 13/16" |
1 3/4" |
| |
CHTM-1011-15 |
1000 |
120 |
.315 |
14 31/32" |
13" |
7 13/16" |
1 3/4" |
| |
CHTM-1021-15 |
1000 |
208 |
.315 |
14 31/32" |
13" |
7 13/16" |
1 3/4" |
|
