Sauna Bath Heaters - Alloy Sheath

Click Image to Enlarge

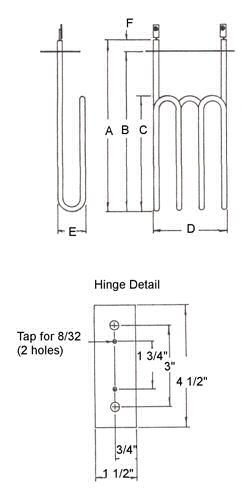

Therm-Coil Drawing
Number		 Therm-Coil
Model Number		 Watts Volts A B C D E F
  SB-3041 3000 240 13 1/4" 12 1/4" 5 5/8" 3 1/2" 1 3/8" 1"

Therm-Coil Drawing
Number		 Therm-Coil
Model Number		 Watts Volts A B C D E F
  SBH-2021 2000 208 13 1/2" 13" 10 5/8" 3 5/16" 1 3/8" 1/2"
  SBH-2541 2500 240 13 1/2" 13" 5 3/4" 3 5/16" 1 3/8" 1/2"
  SBH-3021 3000 208 13 1/2" 13" 10 5/8" 3 5/16" 1 3/8" 1/2"
  SBH-3041 3000 240 13 1/2" 13" 10 5/8" 3 5/16" 1 3/8" 1/2"
  SBH-4041 4000 240 13 1/2" 13" 10 5/8" 3 5/16" 1 3/8" 1/2"
