Progressive Metal

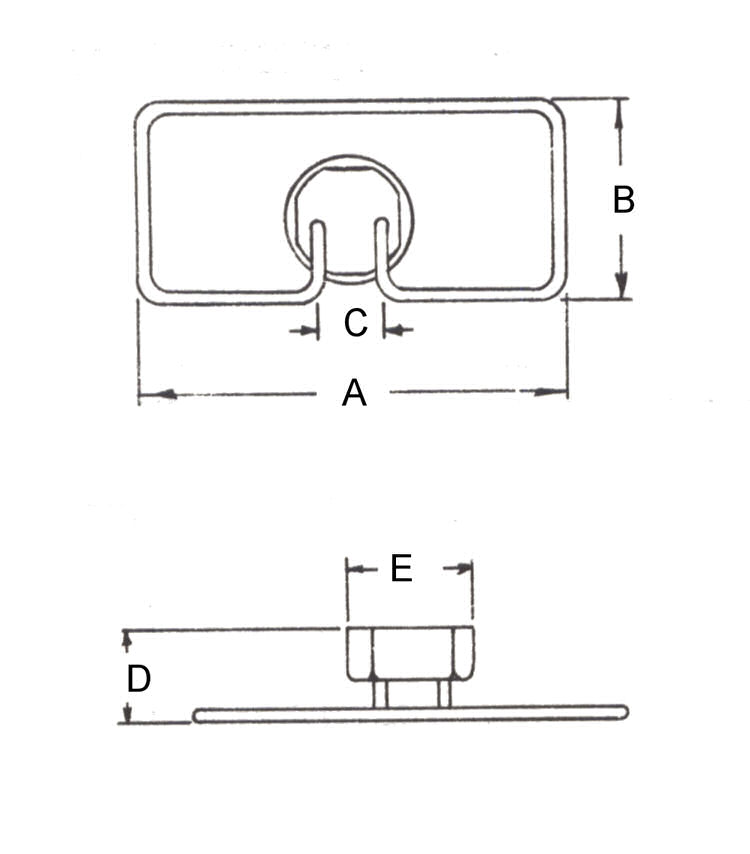

Therm-Coil Drawing Number |
Therm-Coil Model Number |
Watts | Volts | A | B | C | D | E |
---|---|---|---|---|---|---|---|---|
STPM-711 | 750 | 120 | 14 5/16" | 6 5/16" | 2" | 3 13/32" | 4 1/8" | |
STPM-721 | 750 | 208 | 14 5/16" | 6 5/16" | 2" | 3 13/32" | 4 1/8" | |
STPM-741 | 750 | 240 | 14 5/16" | 6 5/16" | 2" | 3 13/32" | 4 1/8" | |
STPM-1011 | 1000 | 120 | 14 5/16" | 6 5/16" | 2" | 3 13/32" | 4 1/8" | |
STPM-1021 | 1000 | 208 | 14 5/16" | 6 5/16" | 2" | 3 13/32" | 4 1/8" | |
STPM-1041 | 1000 | 240 | 14 5/16" | 6 5/16" | 2" | 3 13/32" | 4 1/8" | |
STPM-1211 | 1250 | 120 | 14 5/16" | 6 5/16" | 2" | 3 13/32" | 4 1/8" | |
STPM-1221 | 1250 | 208 | 14 5/16" | 6 5/16" | 2" | 3 13/32" | 4 1/8" | |
STPM-1241 | 1250 | 240 | 14 5/16" | 6 5/16" | 2" | 3 13/32" | 4 1/8" | |
STPM-1511 | 1500 | 120 | 14 5/16" | 6 5/16" | 2" | 3 13/32" | 4 1/8" | |
STPM-1521 | 1500 | 208 | 14 5/16" | 6 5/16" | 2" | 3 13/32" | 4 1/8" | |
STPM-1541 | 1500 | 240 | 14 5/16" | 6 5/16" | 2" | 3 13/32" | 4 1/8" |
