Miscellaneous Steam Table Elements

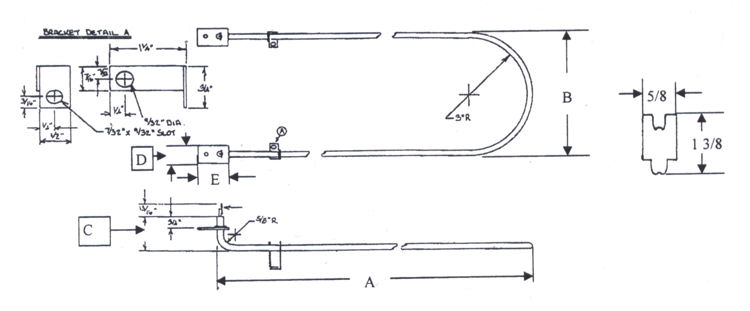

Therm-Coil Drawing Number |
Watts | Volts | A | B | C | Legs / Brackets |
Hinge Dim C x D |
---|---|---|---|---|---|---|---|
383B-1052-001 | 740 W | 240 V | 19 1/4" | 6 1/2" | 2" | Brackets | 5/8" x 1 3/8" |
383B-1052-002 | 750 W | 240 V | 19 1/4" | 6 1/2" | 2" | Legs | 5/8" x 1 3/8" |
