Jackson

Single Phase - 1" Brass Screw Plug

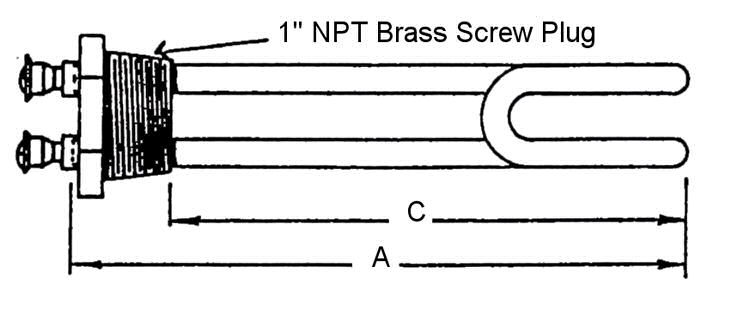

Therm-Coil Drawing
Number
Therm-Coil
Model Number
Watts Volts Dimensions
(Inches)
A B
358L-1002-003 JAO-2141-H 2180 220 12 10 1/2
358L-1002-005 JAO-2141-L 2180 220 16 1/2 15
358L-1002-006 JAO-25X1-H 2560 254 10 1/2 9
358L-1002-007 JAO-2121-L 2180 208 16 1/2 15
358L-1002-008 JAO-2121-H 2180 208 12 10 1/2
358L-1002-009 JAO-2041-L 2000 220 16 1/2 15
358L-1002-010 JAO-2541-H 2500 220 12 10 1/2
358L-1002-011 JAO-2521-H 2500 208 12 10 1/2
358L-1002-012 JAO-2541-L 2500 230 16 1/2 15
