Hatco

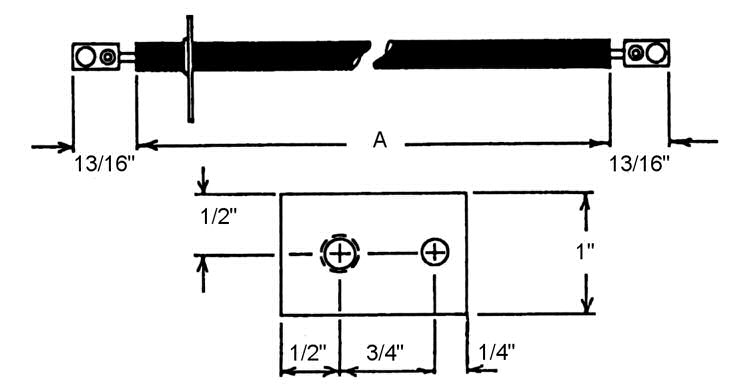

Therm-Coil  Drawing
Number		 Therm-Coil Part Number Watts Volts A
  H-02-08-031 250 115 13 1/2"
  H-02-08-001 350 115 20"
  H-02-08-002 350 208 20"
  H-02-08-003 350 230 20"
  H-02-08-026 450 115 26"
  H-02-08-027 450 208 26"
  H-02-08-028 450 230 26"
  H-02-08-004 575 115 32"
  H-02-08-005 575 208 32"
  H-02-08-006 575 230 32"
  H-02-08-007 675 115 38"
  H-02-08-008 675 208 38"
  H-02-08-009 675 230 38"
  H-02-08-010 800 115 44"
  H-02-08-011 800 208 44"
  H-02-08-012 800 230 44"
  H-02-08-025 925 115 50"
  H-02-08-029 925 208 50"
  H-02-08-030 925 230 50"
  H-02-08-013 1050 115 56 3/4"
  H-02-08-014 1050 208 56 3/4"
  H-02-08-015 1050 230 56 3/4"
  H-02-08-032 1160 115 62"
  H-02-08-033 1160 208 62"
  H-02-08-034 1160 230 62"
  H-02-08-016 1275 115 67 1/2"
  H-02-08-017 1275 208 67 1/2"
  H-02-08-018 1275 230 67 1/2"
  H-02-08-126 350 115 13 1/2"
  H-02-08-135 350 230 13 1/2"
  H-02-08-101 500 115 20"
  H-02-08-102 500 208 20"
  H-02-08-103 500 230 20"
  H-02-08-127 660 115 26"
  H-02-08-128 660 208 26"
  H-02-08-129 660 230 26"
  H-02-08-104 800 115 32"
  H-02-08-105 800 208 32"
  H-02-08-106 800 230 32"
  H-02-08-107 950 115 38"
  H-02-08-108 950 208 38"
  H-02-08-109 950 230 38"
  H-02-08-110 1100 115 44"
  H-02-08-111 1100 208 44"
  H-02-08-112 1100 230 44"
  H-02-08-125 1250 115 50"
  H-02-08-130 1250 208 50"
  H-02-08-131 1250 230 50"
  H-02-08-113 1400 115 56 3/4"
  H-02-08-114 1400 208 56 3/4"
  H-02-08-115 1400 230 56 3/4"
  H-02-08-132 1560 115 62"
  H-02-08-133 1560 208 62"
  H-02-08-134 1560 230 62"
  H-02-08-116 1725 115 67 1/2"
  H-02-08-117 1725 208 67 1/2"
  H-02-08-118 1725 230 67 1/2"
