Hatco

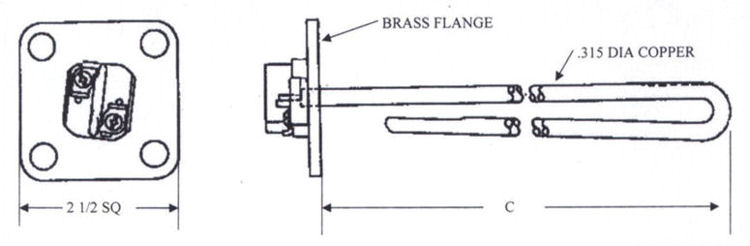

| Therm-Coil Drawing Number |
Hatco Part Number |
Watts | Volts | C |
|---|---|---|---|---|
| 378F-1375-014 | H 02-04-601 | 6000 W | 220 V | 13.31" |
| 378F-1375-015 | H 02-04-602 | 6000 W | 230 V | 13.31" |
| 378F-1375-016 | H 02-04-603 | 6000 W | 240 V | 13.31" |
| 378F-1375-017 | H 02-04-604 | 6000 W | 318 V | 13.31" |
| 378F-1375-018 | H 02-04-605 | 6000 W | 480 V | 13.31" |
| 378F-1375-019 | H 02-04-610 | 6000 W | 208 V | 15" |
| 378F-1375-020 | H 02-04-611 | 6000 W | 240 V | 15" |
| 378F-1375-021 | H 02-04-612 | 6000 W | 318 V | 15" |
| 378F-1375-022 | H 02-04-613 | 6000 W | 480 V | 15" |
| 378F-1375-023 | H 02-04-614 | 6000 W | 220 V | 15" |
| 378F-1375-024 | H 02-04-650 | 6500 W | 208 V | 15" |
| 378F-1375-025 | H 02-04-651 | 6500 W | 220 V | 15" |
| 378F-1375-026 | H 02-04-653 | 6500 W | 240 V | 15" |
| 378F-1375-027 | H 02-04-654 | 6500 W | 318 V | 15" |
| 378F-1375-028 | H 02-04-655 | 6500 W | 480 V | 15" |
| 378F-1375-029 | H 02-04-200 | 2000 W | 120 V | 9.81" |
| 378F-1375-030 | H 02-04-201 | 2000 W | 208 V | 9.81" |
| 378F-1375-031 | H 02-04-202 | 2000 W | 240 V | 9.81" |
| 378F-1375-032 | H 02-04-250 | 2500 W | 120 V | 9.81" |
| 378F-1375-033 | H 02-04-251 | 2500 W | 208 V | 9.81" |
| 378F-1375-034 | H 02-04-252 | 2500 W | 240 V | 9.81" |
| 378F-1375-035 | H 02-04-300 | 3000 W | 318 V | 9.81" |
| 378F-1375-036 | H 02-04-301 | 3000 W | 120 V | 9.81" |
| 378F-1375-037 | H 02-04-302 | 3000 W | 208 V | 9.81" |
| 378F-1375-038 | H 02-04-303 | 3000 W | 240 V | 9.81" |
| 378F-1375-039 | H 02-04-305 | 3000 W | 480 V | 9.81" |
| 378F-1375-040 | H 02-04-350 | 3500 W | 208 V | 9.81" |
| 378F-1375-041 | H 02-04-351 | 3500 W | 240 V | 9.81" |
| 378F-1375-042 | H 02-04-352 | 3500 W | 480 V | 9.81" |
| 378F-1375-043 | H 02-04-353 | 3500 W | 318 V | 9.81" |
| 378F-1375-044 | H 02-04-400 | 4000 W | 208 V | 11.5" |
| 378F-1375-045 | H 02-04-401 | 4000 W | 240 V | 11.5" |
| 378F-1375-046 | H 02-04-402 | 4000 W | 318 V | 11.5" |
| 378F-1375-047 | H 02-04-404 | 4000 W | 480 V | 11.5" |
| 378F-1375-048 | H 02-04-450 | 4500 W | 208 V | 11.5" |
| 378F-1375-049 | H 02-04-451 | 4500 W | 240 V | 11.5" |
| 378F-1375-050 | H 02-04-452 | 4500 W | 318 V | 11.5" |
| 378F-1375-051 | H 02-04-453 | 4500 W | 480 V | 11.5" |
| 378F-1375-052 | H 02-04-500 | 5000 W | 208 V | 11.5" |
| 378F-1375-053 | H 02-04-501 | 5000 W | 240 V | 11.5" |
| 378F-1375-054 | H 02-04-502 | 5000 W | 480 V | 11.5" |
| 378F-1375-055 | H 02-04-510 | 5000 W | 318 V | 11.5" |
| 378F-1375-056 | H 02-04-600 | 5750 W | 208 V | 13.31" |
| 378F-1375-057 | H 02-04-605 | 6000 W | 480 V | 11.5" |
| 378F-1375-058 | H 02-04-603 | 6000 W | 240 V | 11.5" |
| 378F-1375-059 | H 02-04-600A | 6000 W | 208 V | 11.5" |
| 378F-1375-060 | H 02-04-306 | 3000 W | 277 V | 9.81" |
| 378F-1375-061 | H 02-04-354 | 3500 W | 277 V | 9.81" |
| 378F-1375-062 | H 02-04-405 | 4000 W | 277 V | 11.5" |
| 378F-1375-063 | H 02-04-454 | 4500 W | 277 V | 11.5" |
| 378F-1375-064 | H 02-04-511 | 5000 W | 277 V | 11.5" |
| 378F-1375-065 | H 02-04-614 | 6000 W | 277 V | 15" |
| 378F-1375-066 | H 02-04-604 | 6000 W | 277 V | 13.31" |
| 378F-1375-067 | H 02-04-656 | 6500 W | 277 V | 15" |
