EHC-2004 Controls Catalog

6
Previous Page	Home Page	Controls Index

Electric Furnace Sequencer

	X=Discontinued when present stock is depleted.

Air Flow Switches

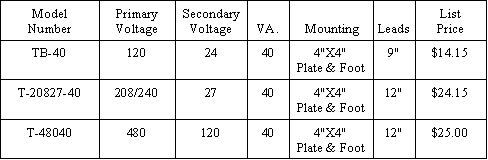

Transformers

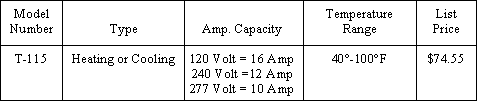

Mechanical Thermostat Rain Tight, Weather Resistant N.E.M.A. 4X

Features
-N.E.M.A. 4X enclosure complies with N.E.C. article 547 when used with appropriate
water tight connections.
-Rugged weather resistant enclosure made of corrosion resistant materials for long life
-Low mass, high surface area of stainless steel coiled sensor provides rapid response to
temperature change.
-Large, readily visible dial with 40°-100°F temperature range.
-Multi-positional mounting offers flexibility in either new or existing installations.
-One control for both heating and cooling applications
-UL listed and CSA certified.

Previous Page	Home Page	Controls Index
6

Mechanical Thermostat Rain Tight, Weather Resistant N.E.M.A. 4X

	Features -N.E.M.A. 4X enclosure complies with N.E.C. article 547 when used with appropriate water tight connections. -Rugged weather resistant enclosure made of corrosion resistant materials for long life -Low mass, high surface area of stainless steel coiled sensor provides rapid response to temperature change. -Large, readily visible dial with 40°-100°F temperature range. -Multi-positional mounting offers flexibility in either new or existing installations. -One control for both heating and cooling applications -UL listed and CSA certified.
