| COIL VOLTAGE |
INDUCTIVE AMPS |
NON INDUCTIVE AMPS |

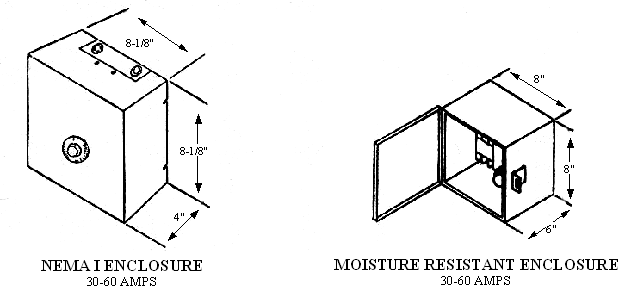

MODEL NUMBER WITH NEMA 1 ENCLOSURE |
MODEL NUMBER WITH MOISTURE RESISTANT ENCLOSURE |
TEMPERATURE RANGE |
|
| 30 AMP 3 POLE |
24 120 208/240 24 120 208/240 |
25 | 30 | *G1M-330-C02TE G1M-330-C1E G1M-330-C4E *G2M-330-C02TE G2M-330-C1E G2M-330-C4E |
*G1M-330-C02TWP G1M-330-C1WP G1M-330-C4WP *G2M-330-C02TWP G2M-330-C1WP G2M-330-C4WP |
30°-90°F 30°-90°F 30°-90°F 60°-250°F 60°-250°F 60°-250°F |
| 40 AMP 3 POLE |
24 120 208/240 24 120 208/240 |
30 | 40 | *G1M-340-C02TE G1M-340-C1E G1M-340-C4E *G2M-340-C02TE G2M-340-C1E G2M-340-C4E |
*G1M-340-C02TWP G1M-340-C1WP G1M-340-C4WP *G2M-340-C02TWP G2M-340-C1WP G2M-340-C4WP |
30°-90°F 30°-90°F 30°-90°F 60°-250°F 60°-250°F 60°-250°F |
| 50 AMP 3 POLE |
24 120 208/240 24 120 208/240 |
40 | 50 | *G1M-350-C02TE G1M-350-C1E G1M-350-C4E *G2M-350-C02TE G2M-350-C1E G2M-350-C4E |
*G1M-350-C02TWP G1M-350-C1WP G1M-350-C4WP *G2M-350-C02TWP G2M-350-C1WP G2M-350-C4WP |
30°-90°F 30°-90°F 30°-90°F 60°-250°F 60°-250°F 60°-250°F |
| 60 AMP 3 POLE |
24 120 208/240 24 120 208/240 |
50 | 60 | *G1M-360-C02TE G1M-360-C1E G1M-360-C4E *G2M-360-C02TE G2M-360-C1E G2M-360-C4E |
*G1M-360-C02TWP G1M-360-C1WP G1M-360-C4WP *G2M-360-C02TWP G2M-360-C1WP G2M-360-C4WP |
30°-90°F 30°-90°F 30°-90°F 60°-250°F 60°-250°F 60°-250°F |
*For 480 Volt Line Application Only. Second voltage line not required on models that include transformer (Suffix “T”).
PLEASE NOTE CONSUMER WARNING ON BACK COVER
