Alloy Sheath Immersion Element
With 1-1/4" N.P.T. Stainless Steel Screw Plug-Nickel Brazed

30 Watts Per Square Inch With Thermowell
3/8" ID Stainless Steel Thermowell
Non-Regulated

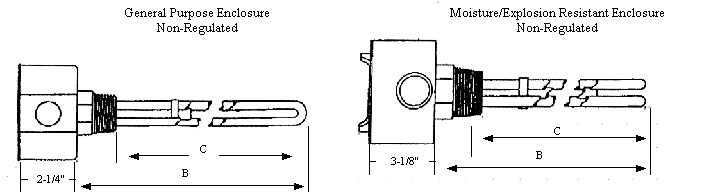

KW Volts Phase Rod Dimensions
(Inches)
Non-Regulated
General Purpose
Enclosure
Moisture/Explosion
Resistant Enclosure
B C
1
1
120
240
1
1
1
1
15-3/8
15-3/8
14
14
AQ-1011LSSN
AQ-1041LSSN
AQ-1011LSSN-WXP
AQ-1041LSSN-WXP
1.5
1.5
120
240
1
1
2
2
18-5/8
18-5/8
15
15
AQ2-1511LSSN
AQ2-1541LSSN
AQ2-1511LSSN-WXP
AQ2-1541LSSN-WXP
2
2
120
240
1
1
2
2
22-5/8
22-5/8
19
19
AQ2-2011LSSN
AQ2-2041LSSN
AQ2-2011LSSN-WXP
AQ2-2041LSSN-WXP
3
3
120
240
1
1
2
2
28-3/8
28-3/8
27
27
AQ2-3011LSSN
AQ2-3041LSSN
AQ2-3011LSSN-WXP
AQ2-3041LSSN-WXP

Note:
