For Oil- 22 Watts Per Square Inch
Regulated (Double Pole Stat)

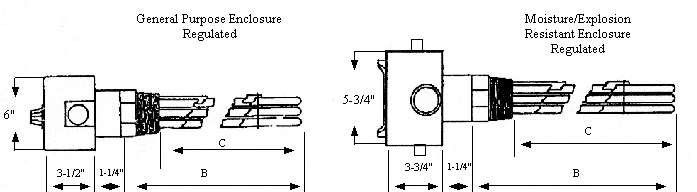

| KW | Volts | Phase | Dimensions (Inches) |
Regulated (60°-250°F) | ||
| General Purpose Enclosure |
Moisture/Explosion Resistant Enclosure |
|||||
| B | C | |||||
| 5 5 |
208 208 |
1 3 |
31 31 |
29 29 |
DS-5021 DS-5023 |
DS-5021WXP DS-5023WXP |
| 5 5 |
240 240 |
1 3 |
31 31 |
29 29 |
DS-5041 DS-5043 |
DS-5041WXP DS-5043WXP |
| 5 5 |
480 480 |
1 3 |
31 31 |
29 29 |
DS-5051 DS-5053 |
DS-5051WXP DS-5053WXP |
| 7.5 7.5 |
240 240 |
1 3 |
45-1/2 45-1/2 |
43-1/2 43-1/2 |
DS-7541 DS-7543 |
DS-7541WXP DS-7543WXP |
| 7.5 7.5 |
480 480 |
1 3 |
45-1/2 45-1/2 |
43-1/2 43-1/2 |
DS-7551 DS-7553 |
DS-7551WXP DS-7553WXP |
| 10 10 |
240 480 |
3 3 |
59-1/2 59-1/2 |
57-1/2 57-1/2 |
DS-10043 DS-10053 |
DS-10043WXP DS-10053WXP |
Note:
