Alloy Sheath Immersion Element
With 1-1/4" N.P.T. Brass Screw Plug-Silver Brazed

50 Watts Per Square Inch
3/8" ID Stainless Steel Thermowell
Regulated (Single Pole Stat) and Non-Regulated

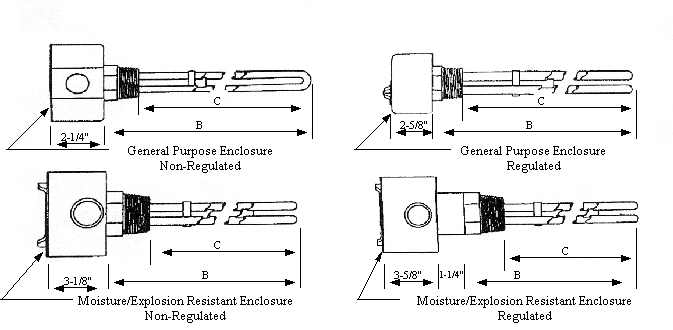

KW Volts Phase Dimensions
(Inches)
Non-Regulated Regulated (60-250F)
General Purpose
Enclosure
Moisture/Explosion
Resistant Enclosure
General Purpose
Enclosure
Moisture/Explosion
Resistant Enclosure
B C
1
1
120
240
1
1
6-9/16
6-9/16
5-3/4
5-3/4
AQ-1011
AQ-1041
AQ-1011-WXP
AQ-1041-WXP
EAQ-1011
EAQ-1041
EAQ-1011-WXP
EAQ-1041-WXP
1.5
1.5
120
240
1
1
12-1/4
12-1/4
11
11
AQ-1511
AQ-1541
AQ-1511-WXP
AQ-1541-WXP
EAQ-1511
EAQ-1541
EAQ-1511-WXP
EAQ-1541-WXP
1.5
1.5
120
240
1
1
11-3/4
11-3/4
10-1/2
10-1/2
AQ2-1511
AQ2-1541
AQ2-1511-WXP
AQ2-1541-WXP
EAQ2-1511
EAQ2-1541
EAQ2-1511-WXP
EAQ2-1541-WXP
2
2
120
240
1
1
12-1/4
12-1/4
11
11
AQ2-2011
AQ2-2041
AQ2-2011-WXP
AQ2-2041-WXP
EAQ2-2011
EAQ2-2041
EAQ2-2011-WXP
EAQ2-2041-WXP
3
3
120
240
1
1
17
17
15-1/2
15-1/2
AQ2-3011
AQ2-3041
AQ2-3011-WXP
AQ2-3041-WXP
EAQ2-3011
EAQ2-3041
EAQ2-3011-WXP
EAQ2-3041-WXP

Note:
